Advanced Vehicle Diagnostics

We don't just read codes - we figure out what's really going on under the hood. Our diagnostic tools go way deeper than your average scanner.

Click on Any Problem Area

Tap the part that's giving you trouble and we'll show you what we check

Vehicle System Diagram
Engine Systems

Check engine lights, rough idle, misfires, timing issues

Transmission

Slipping gears, harsh shifts, fluid contamination analysis

Electrical Systems

Battery drains, sensor failures, wiring faults

Brake Systems

ABS lights, spongy pedal, uneven wear diagnostics

Suspension & Steering

Alignment check, handling issues, component wear

Emissions & Fuel

O2 sensors, catalytic converter, fuel trim analysis

How We Actually Diagnose Your Ride

1

Initial Connection & Code Retrieval

First thing we do is plug into your car's computer with our professional-grade scanners. We're pulling live data, freeze frame data, and any stored trouble codes. But here's the thing - codes just point us in a direction, they're not the answer themselves.

We use factory-level diagnostic equipment, not just generic OBD-II readers
2

Live Data Analysis

Now we're watching your car in real-time. Sensor voltages, fuel trims, timing advance, airflow - all of it. Sometimes we'll take it for a test drive with the scanner hooked up so we can see exactly what happens when the problem shows up.

Live diagnostic data
3

Physical Component Testing

Time to get hands-on. We're checking actual components with multimeters, pressure gauges, whatever's needed. A sensor might be sending a signal, but is it the RIGHT signal? We verify everything mechanically before calling it fixed.

  • Compression testing for engine health
  • Voltage drop testing on circuits
  • Pressure testing fuel and cooling systems
  • Scope analysis for sensor waveforms
4

Root Cause Identification

Here's where experience really matters. We're not just fixing the symptom - we're tracking down what actually caused the problem. Maybe that O2 sensor failed because of an exhaust leak upstream, you know? We find the real issue.

5

Detailed Report & Recommendations

You'll get a full breakdown of what we found, what needs fixing now, and what might need attention down the road. We explain everything in plain English - no jargon unless you want to geek out with us. Plus you get photos and data logs to back it all up.

Priority recommendations help you make smart decisions about repairs
6

Post-Repair Verification

After repairs are done, we don't just clear the codes and send you on your way. We run through the whole diagnostic process again to make sure everything's working like it should. The car tells us when it's happy, and that's when we know we nailed it.

Diagnostic Equipment We Use

Professional Scan Tools

Bosch, Snap-on, and manufacturer-specific diagnostic systems

  • Bi-directional control capability
  • Advanced module programming
  • Real-time graphing (4+ parameters)
  • Factory service procedures integrated
Oscilloscopes & Meters

Digital storage oscilloscopes for electrical signal analysis

  • 4-channel waveform capture
  • Sensor pattern library comparison
  • CAN bus signal analysis
  • Voltage drop testing precision
Pressure & Flow Testing

Specialized gauges for fuel, compression, and hydraulic systems

  • Fuel pressure regulators testing
  • Cylinder leakdown analysis
  • Transmission line pressure
  • Cooling system pressure decay
Thermal Imaging

FLIR thermal cameras for temperature diagnosis

  • Spot overheating components
  • Catalytic converter efficiency
  • Brake system heat analysis
  • HVAC system performance
Borescopes & Cameras

Inspection cameras for internal component viewing

  • Cylinder wall inspection
  • Intake manifold carbon buildup
  • Exhaust system integrity
  • Undercarriage documentation
Alignment & Calibration

Hunter alignment rack with ADAS calibration capability

  • Precision toe/camber/caster
  • Camera & radar recalibration
  • Steering angle sensor reset
  • Electronic stability programming

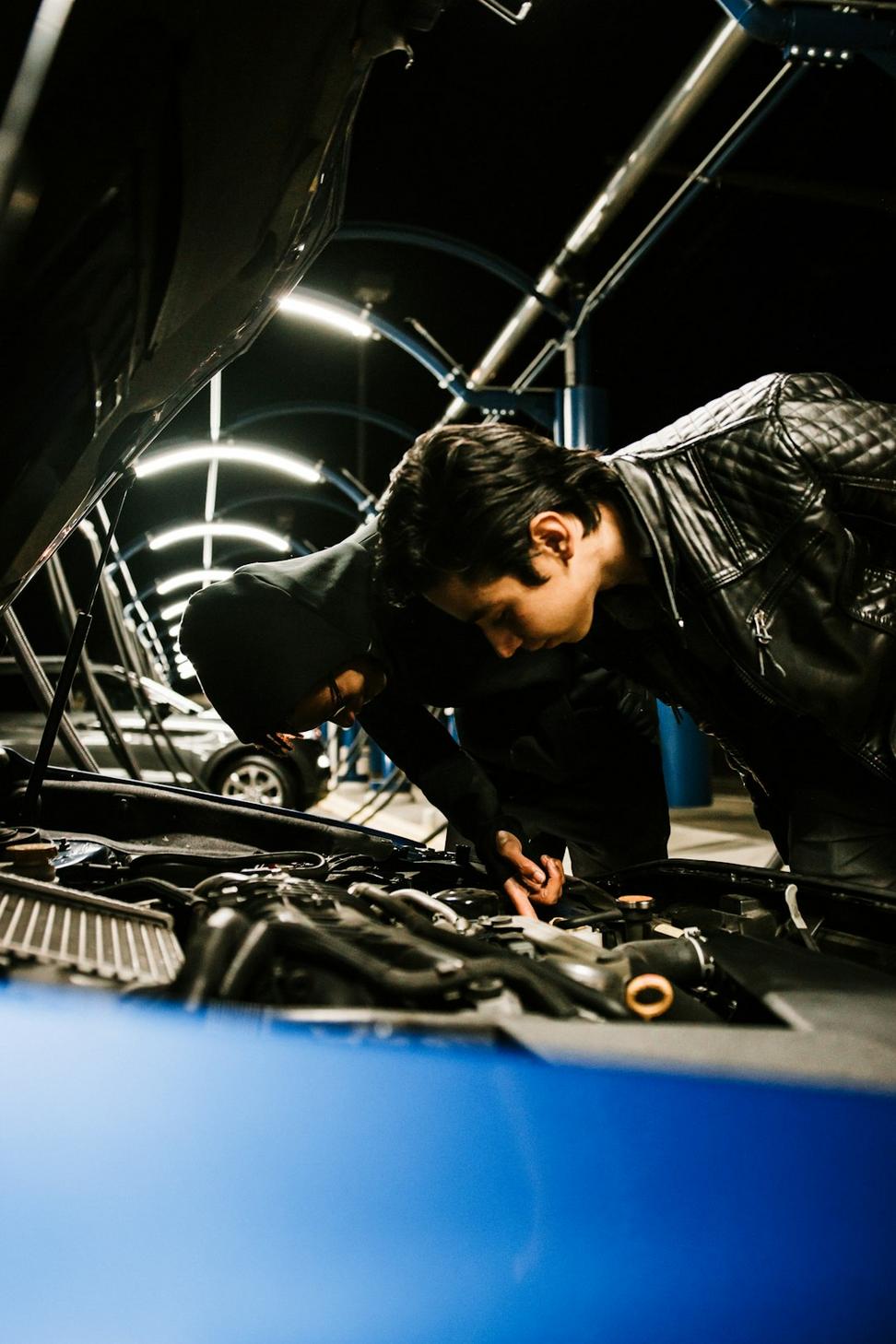

Our diagnostic bay

Common Questions About Diagnostics

Here's what people usually ask us about the diagnostic process

Our standard diagnostic is $125-$175 depending on how deep we need to go. Here's the deal though - if you end up doing the repair with us, we usually apply that toward your bill. Some issues are quick to pinpoint, others need more investigation. We'll always let you know if we need to go deeper before racking up extra charges.

Yeah you can grab the codes, but that's honestly just step one. Those basic scanners give you a code like P0420, which just means "catalyst efficiency low" - but WHY is it low? Could be a bad cat, could be O2 sensors, could be an exhaust leak, or even something with the engine causing it. Our equipment goes way beyond just reading what the computer's complaining about - we figure out the actual root cause.

Depends what we're chasing. Simple check engine light? Maybe an hour if it's straightforward. Intermittent electrical gremlin that only happens when it's cold and raining? Could be a few hours or we might need to keep it overnight to catch it in the act. We're not gonna waste your time or money, but we're also not gonna half-ass it and send you out with a guess.

Rare, but it happens with really intermittent issues. If we can't duplicate or find the problem after a reasonable diagnostic time, we'll be straight with you about it. Sometimes we'll recommend monitoring it and coming back when it acts up again. We've got data loggers we can install temporarily to catch issues that don't happen in the shop. Bottom line - we don't charge you for work that doesn't get us closer to an answer.

Yeah, appointments work best so we can block out proper time and have the right tech available. If it's something urgent like your car barely made it here, give us a call and we'll see what we can do. But for scheduled diagnostics, booking ahead means we're not rushing through your car between other jobs.

Absolutely, that's kind of our thing actually. Modified cars need someone who gets what's been changed and how it affects everything else. We've got the tools to read custom tunes, check boosted setups, diagnose aftermarket ECUs - all of it. A lot of shops freak out when they see mods, but we're comfortable with that stuff.
